Ensuring compatibility between an excavator’s sprocket and its chain is crucial for efficient operation, safety, and the longevity of the machine components. Incompatibility can lead to increased wear, underperformance, and potential operational hazards. Here’s how to make sure that the sprocket and chain are well-suited for each other:
Component Specifications:
Start by verifying the manufacturer’s specifications for both the sprocket and chain. Each component should have detailed documentation outlining its size, pitch, profile, and any proprietary features that affect compatibility. Manufacturers design these parts to meet specific engineering standards to ensure they work together seamlessly.
Size and Pitch Matching:
The size of the sprocket must match the size of the chain links, and this includes the pitch, which is the distance between each of the chain link’s pins. Using a chain with a pitch that’s too large for the sprocket will prevent the teeth from engaging properly, while a pitch that’s too small can lead to an overly tight fit, causing strain and rapid wear.
Profile Compatibility:
The tooth profile of the sprocket must correspond to the chain’s design. This includes the depth, width, and curvature of the sprocket teeth. Excavator chains often have specific requirements for sprocket profiles to distribute stress efficiently during operation.
Material Quality and Rating:
Ensure that both the sprocket and chain are constructed from materials suited for the operational demands of the excavator. They should have compatible quality and strength ratings to handle the forces they will encounter during use. For instance, they should both be rated for the same grade of service or load.

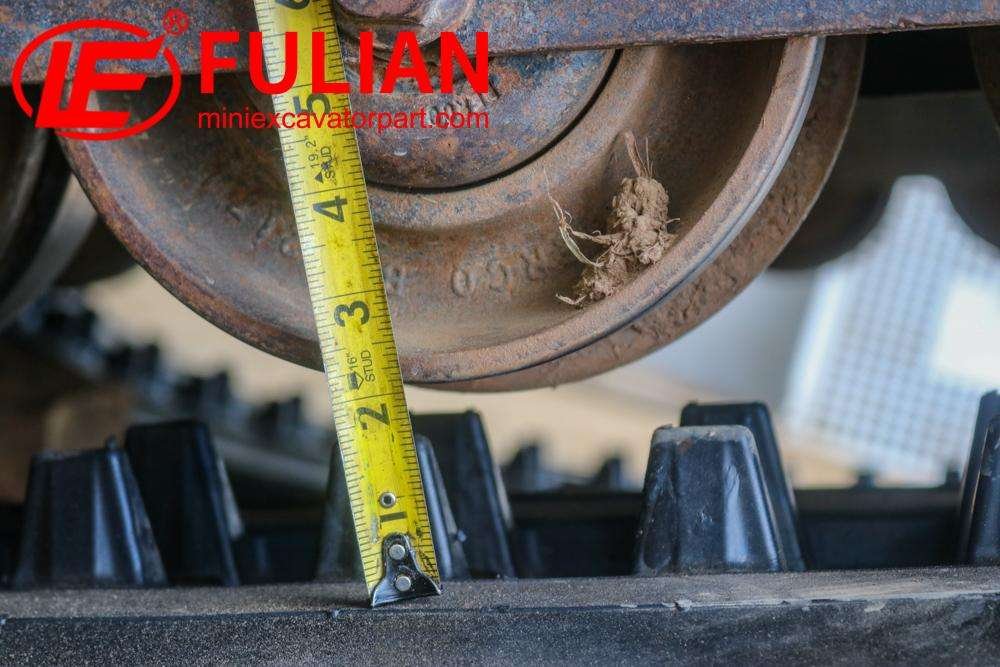

Checking for Wear:
Even if a sprocket and chain are initially compatible, wear over time can change their dimensions and lead to incompatibility. Routine inspections are essential to measure wear, and components should be replaced before they reach the end of their service life—not just when they fail.
Consulting the Manufacturer:
When in doubt, consult the manufacturer of the excavator or the components. They may provide additional resources, like compatibility charts or customer support to help ensure that you’re selecting the correct parts.
Aftermarket Considerations:
If you’re considering aftermarket parts, make sure they are certified or recommended by the manufacturer. Even slight deviations in design or material can lead to operational issues.
In summary, ensuring compatibility between an excavator’s sprocket and chain requires attention to the specific engineering parameters set by the manufacturers, regular maintenance, and a commitment to using quality, matching parts. It’s a necessary diligence that pays off in reliable function and minimized downtime.
Fulian Operation Team
2024.3.26
