KX033-4, the latest addition to Kubota’s mini excavator, made its concrete world debut in 2017. The 3 ton excavator now features many of the standard features of Kubota’s larger machines, including a larger cab, a dash control preset for the auxiliary loop, and a standard hydraulic steering valve. It’s available at the dealership this month.
Powered by a 24.8 HP Kubota Tier 4 terminal engine, the machine has an adjustable hydraulic system that allows the operator to program up to five different oil flow rates through a digital control panel. The engine speed can be set to automatically idle when the control level is neutral for more than 4 seconds, enabling the unit to improve fuel efficiency and reduce noise. The traditional tail-flap kx033-4 is dug to a depth of 10 feet 6 inches, replacing the KX91-3. Standard Steering Valves on the KX033-4 can be easily switched by turning the wrench.

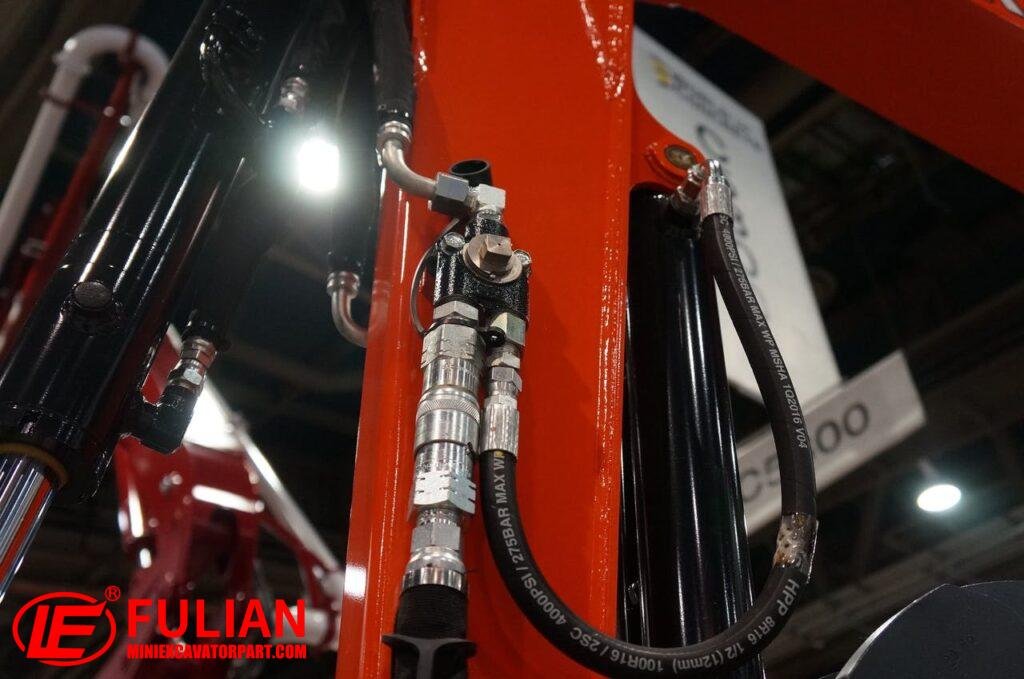

The maximum flow rate of the auxiliary hydraulic circuit of the machine is 15.8 grams per minute. The high-capacity hydraulic system drives a performance-matching arm, arm and barrel, with maximum barrel breakout force of 8,138 and 3,867 lb arms. A standard three-line hydraulic return system allows the oil to be returned directly to the tank without the need to control valve flow, thereby reducing back pressure and heat and increasing efficiency. Kubota Jeff, product manager Jeff Jacobsmeyer says: “A standard shunt valve is mounted on a bucket rod that connects two accessories, a thumb and a hammer.”. For example, when the operator has finished with the circuit breaker, he can turn the valve with a wrench so that he can use his thumb
The battery removes residual pressure, allows easier attachment changes, and helps lower the front attachment when the engine is shut off. All hydraulic lines are repositioned inside the spoon Rod, removing them from the sides to avoid injury. In addition, led lights have been moved from one side of the boom and are now placed in the bend of the boom. Angle cutters have reversible and replaceable wear edges that can be turned over in 20 minutes.
Kubota uses reversible and replaceable right-angle and optional-angle blades. “Many people choose to use angle blades because it makes backfilling much easier,”says Jacobs Meyer. “With this reversible blade, you can unscrew eight bolts, flip it over, and get another worn surface in about 20 minutes.”Angle blades are operated by a lever in the cab that moves the blades up and down, and the positioning of the left and right corners is done by a rocker switch on the top of the lever. A standard float function allows the workstation to be cleaned and dragged back.
Reclining high backrest suspension seats provide operational comfort, including weight compensation and firm adjustable wrist support. Wider, newer digital display panels with push-button operation allow operators to monitor key controls, such as hydraulic oil flow. The Auxiliary 1 operating switch is located at the control level of the right joystick, and there is a two-speed travel switch on the bulldozer lever. In Mass napping applications, the machine automatically switches from high to low, switching back to higher speeds as the load is reduced.
